New Type 60T CNC Servo Press Brake 2m Length Worktable bend 2.5mm stainless steel

New Type 60T CNC Servo Press Brake 2m Length Worktable bend 2.5mm stainless steel

  • Feature
    servo motor drive
  • Control Type
    CNC control
  • Back Gauge Repositioning Speed
    500mm per second
  • Force
    250Ton
  • Guarantee Time
    one year
  • Model
    PBS 60/2000
  • Table Width
    2000mm
  • Usage
    Bending sheet metal
  • Upper Punching
    secton gooseneck punching
  • Machine Length
    2000mm
  • Power
    5.5kw motor
  • Ram Stroke Length
    7.8 inches
  • Voltage
    380V,220V,415V or special order
  • Bending Times
    8 times/Min-1
  • Dimension
    2800*1800*2400mm
  • Place of Origin
    China
  • Nom de marque
    WXJQ
  • Certification
    ISO9001
  • Model Number
    PBS60/2000
  • Minimum Order Quantity
    1
  • Delivery Time
    20 days
  • Payment Terms
    L/C, T/T

New Type 60T CNC Servo Press Brake 2m Length Worktable bend 2.5mm stainless steel

New Type 60T CNC Servo Press Brake 2m Length Worktable bend 2.5mm stainless steel



Indrduction of full servo press brake:

The servo bending machine is an important equipment in modern sheet metal processing,, with its high precision,

intelligence and energy-saving efficiency, is widely used in the fields of automobiles, aerospace, electronics, etc.

The following is a detailed analysis of its core features:

1.High precision and repeat positioning accuracy:
Closed-loop control: Utilizing servo motors for direct drive, combined with high-resolution grating rulers for real-time

feedback of position signals, dynamic error compensation is achieved, ensuring that the bending angle accuracy can

reach ±0.1°.Elimination of mechanical clearance: The temperature changes of hydraulic oil and mechanical wear in

traditional hydraulic machines can lead to a decline in precision. However, the servo system avoids such issues through

digital control, maintaining long-term stability.
Application scenarios: Suitable for the processing of precision electronic components (such as mobile phone casings) or

high-demand automotive parts (such as seat belt buckles).

2. Dynamic Response and Speed Regulation:
Rapid idle travel: The servo motor can move the slider at the maximum speed (typically ≥ 200mm/s) when there is no load,

reducing non-processing time.
Flexible speed change: During the bending stage, it automatically switches to a low speed (e.g., 0.1 - 5mm/s) to ensure uniform

material forming; hydraulic machines need to adjust through valves, with a significant response delay.
Case comparison: When processing 1mm stainless steel plates, the cycle time of a servo bending machine can be shortened

by more than 30% compared to a hydraulic machine.

3. Energy conservation and environmental protection:
Energy consumption comparison: The hydraulic press continuously operates the oil pump, with a fixed energy consumption

(e.g. 10kW/h); the servo bending machine only consumes electricity during operation, and the standby power consumption is

nearly zero, resulting in a comprehensive energy saving of 50%-70%.
Reduction of oil pollution: No need for hydraulic oil, avoiding oil leakage pollution and the cost of waste oil treatment, in line

with the ISO 14001 environmental protection standard.



parameter of CNC servo press brake:



No.Machine model Unit Parameters
1. pressure T 60
2. Workbench length mm 2000
3. Column distance mm 450
4. throat depth mm 300
5. Slide stroke mm 200
6. Opening height mm 450
7. Back gauge stroke mm 600
8. Stroke of R axis mm 200
9. Max slider speed mm/s 200
10. Return speed mm/s 1600
11. Bending speed mm/s 0.1-500
12. Idle speed mm/s 200
10. Main motor Power KW 2X16
11. CNC system Model DELEM DA66T
12. Number of CNC axes: Y1,Y2,X,R,Z1,Z2
13. Overall dimensions Length mm 2470
14. Width mm 1752
15. Height mm 2674
13. Machine weight Kg 4100

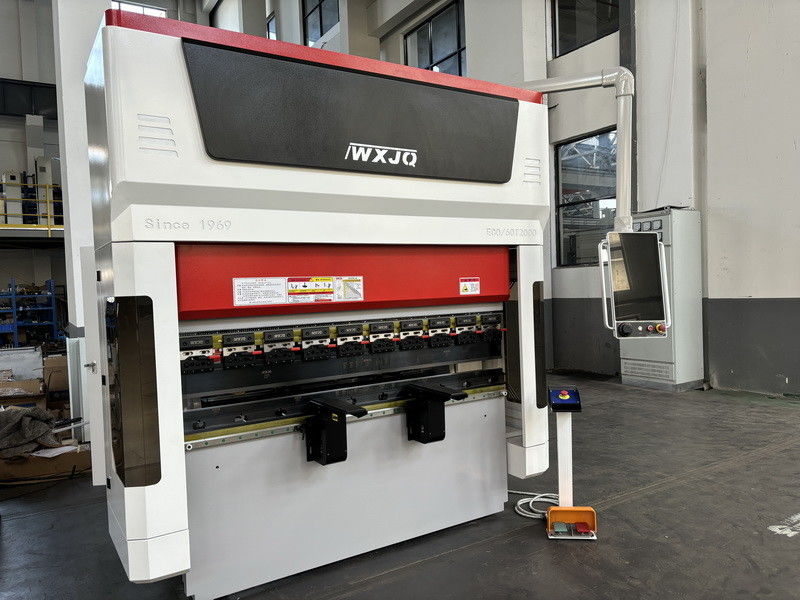

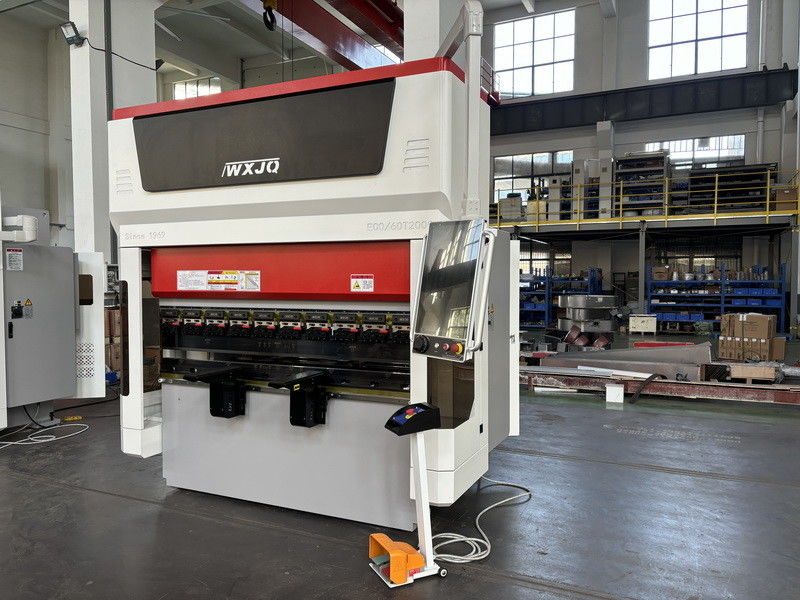

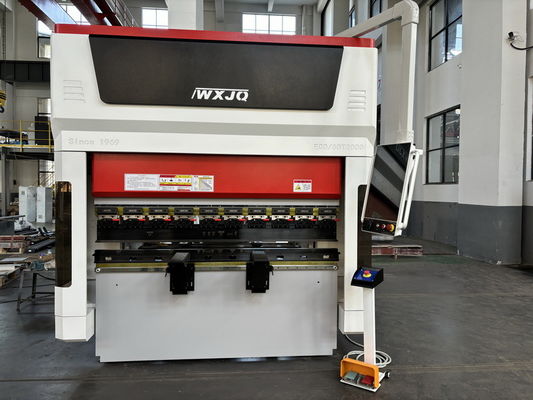

photo of CNC servo press berake machine:

New Type 60T CNC Servo Press Brake 2m Length Worktable bend 2.5mm stainless steel 0
